Military Surplus. Individual Listing. Individually Pictured.

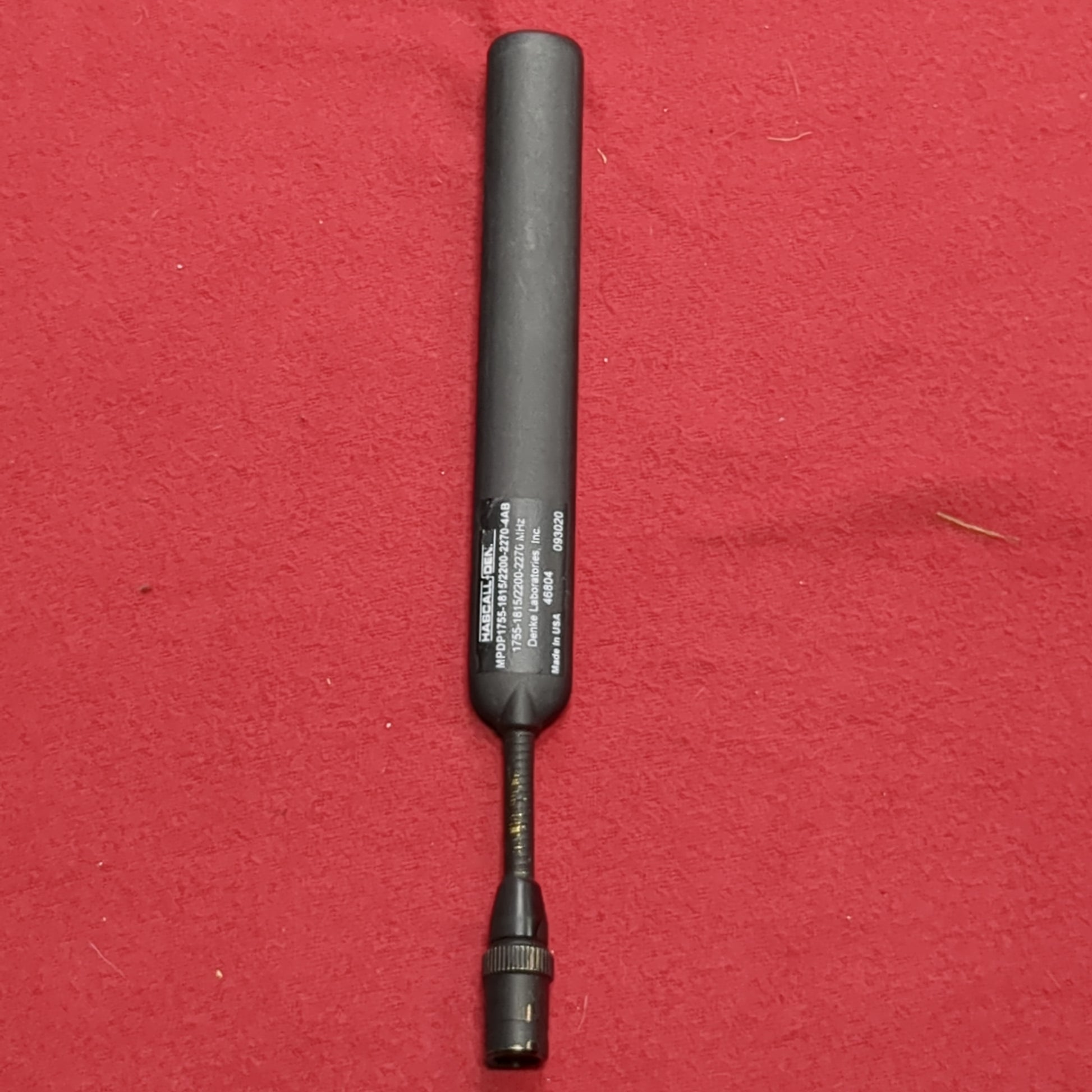

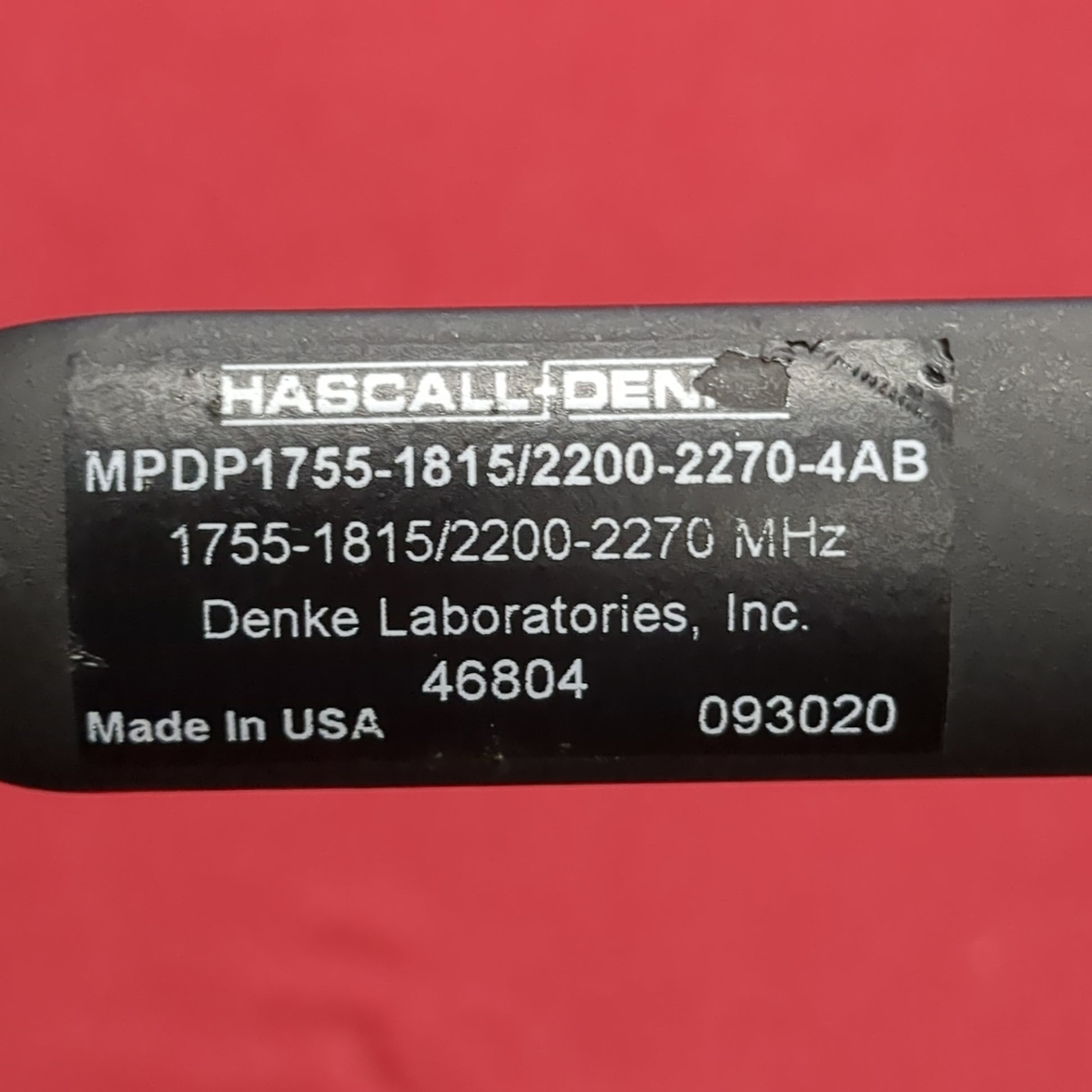

IDENTIFIERS ON ANTENNA:
Hascall-Denke
MPDP1755-1815/2200-2270-4AB
1755-1815/2200-2270 MHz
Denke Laboratories Inc.
46804
093020
ELECTRICAL: (PER DENKE WEBSITE)
Frequency Range: 1755-1815 & 2200-2270 MHz
Gain: 4.0 dBi +/- .5
VSWR: < 2.0:1 Typical
Input Impedance: 50 Ω Nominal
Power: 25 Watts PEP
Polarization: Vertical
Radiation Pattern: Azimuth: 360°
Elevation: 45°

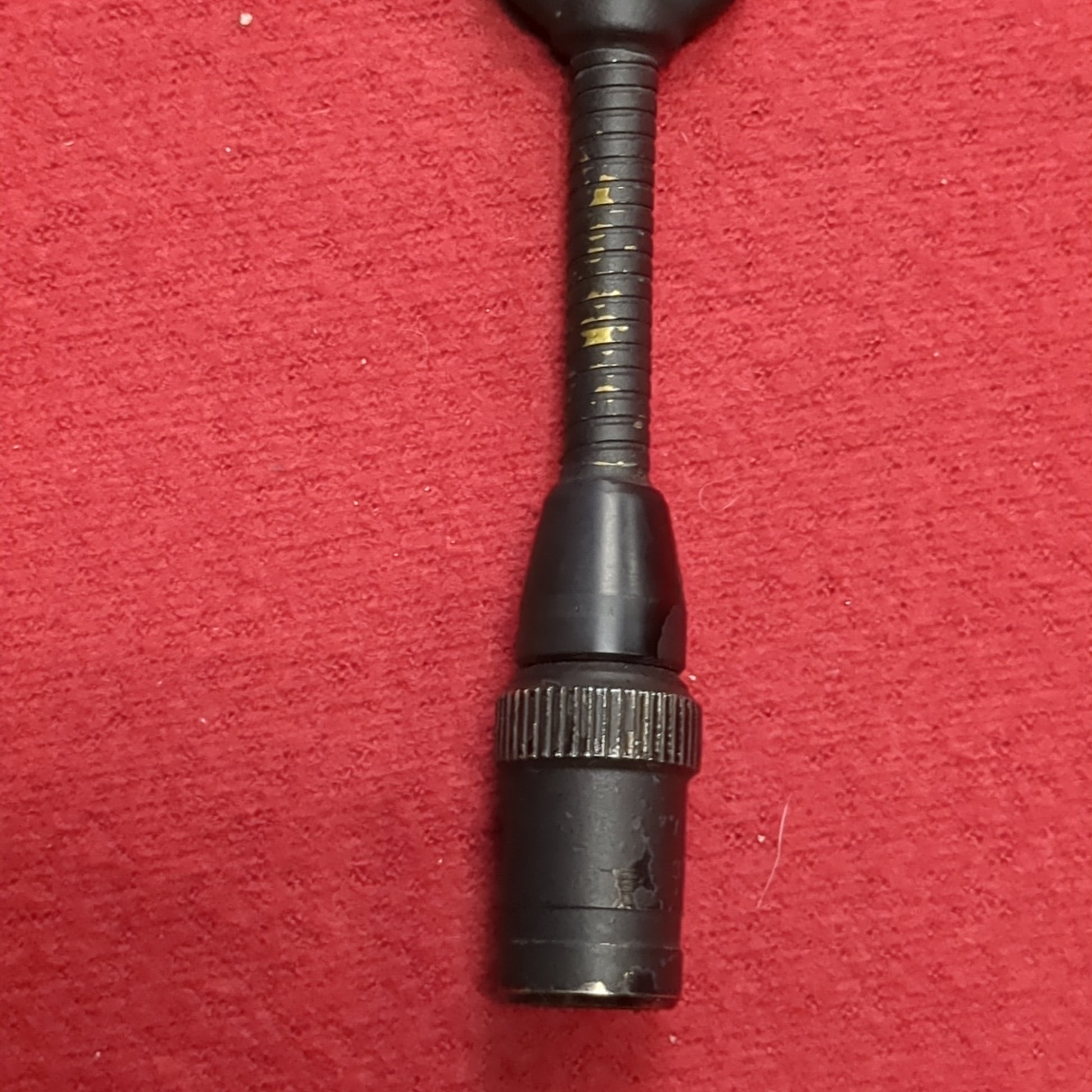

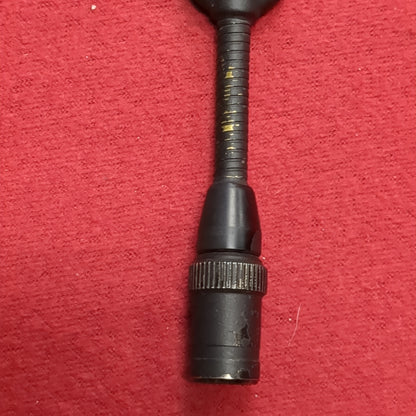

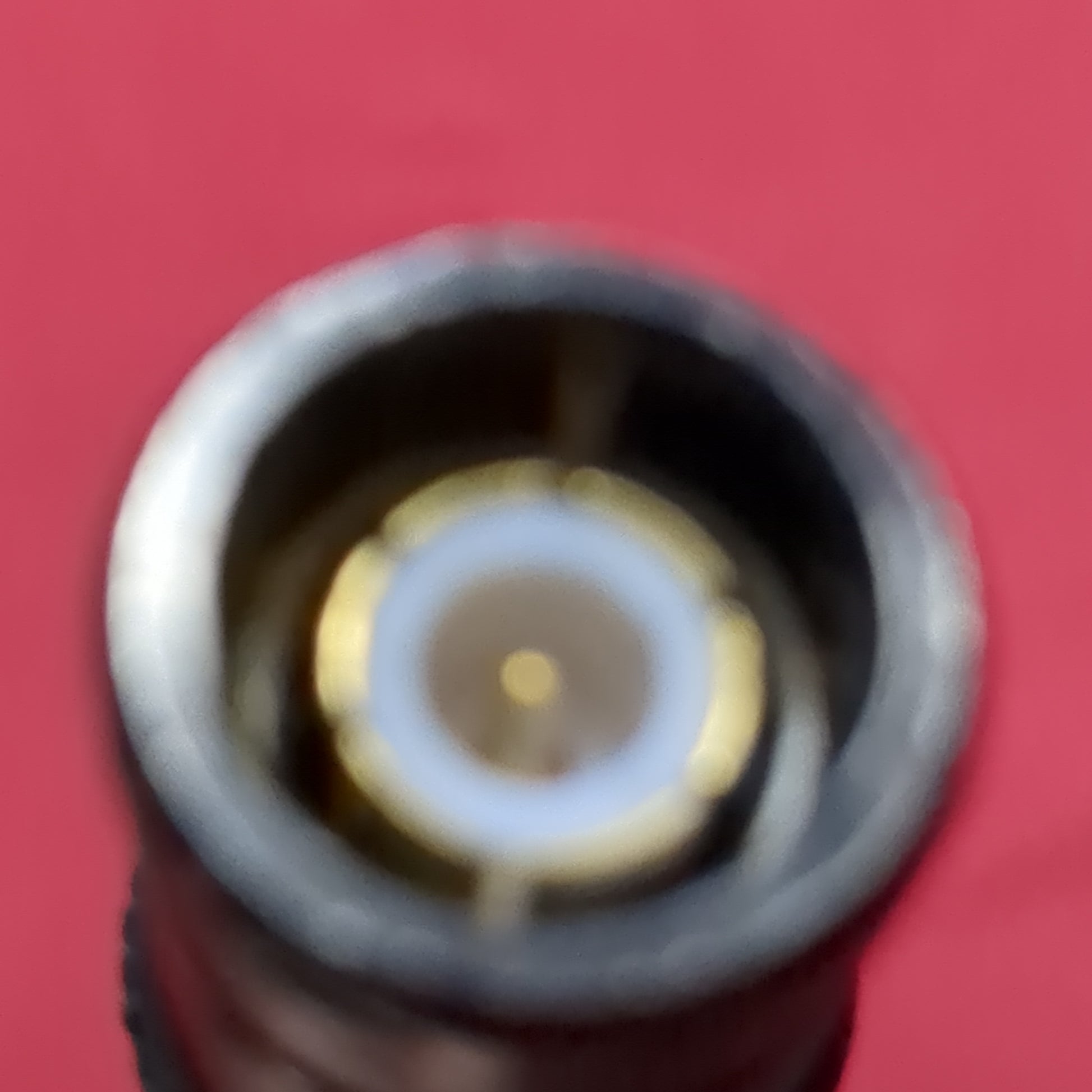

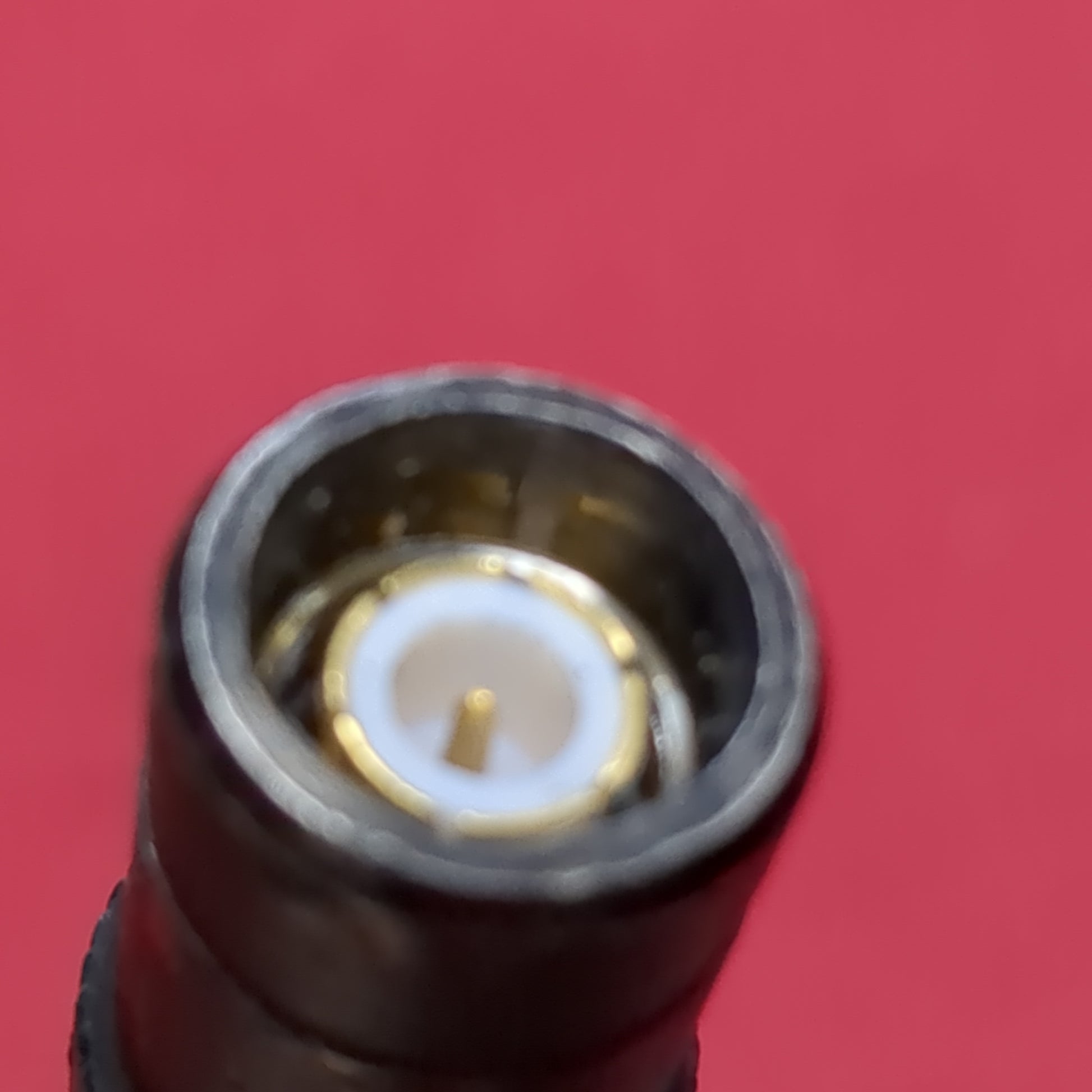

Input Connector: TNC-M
MECHANICAL: (PER DENKE WEBSITE)
Overall Height: 12 in. (.3m)
Radome: 1.12 in X .5 in Oval (29 mm x 12.7 mm)
Net Weight: 3.7 oz. (105 g)
Compliance: Built to meet: MIL-STD-810
Color: Black/Green/Tan/Grey
Deflection at Base: +/- 90°
*Water Ingress: ~ 2 meters @ 30 min. duration
